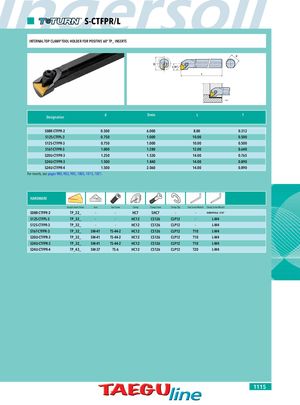

S-CTFPR/L INPATERRTNSAELRTIOESP CLAMP TOOL HOLDER FOR POSITIVE 60° TP_ INSERTS Designation d Dmin L f S08R-CTFPR-2 0.500 6.000 8.00 0.312 S12S-CTFPL-3 0.750 1.000 10.00 0.500 S12S-CTFPR-3 0.750 1.000 10.00 0.500 S16T-CTFPR-3 1.000 1.280 12.00 0.640 S20U-CTFPR-3 1.250 1.530 14.00 0.765 S24U-CTFPR-3 1.500 1.840 14.00 0.890 S24U-CTFPR-4 1.500 2.060 14.00 0.890 For inserts, see pages 980, 983, 985, 1005, 1015, 1021. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Clip Seat Screw Wrench Clamp Screw Wrench S08R-CTFPR-2 TP_22_ - - HC7 SHC7 - - AG00093LLA 3/32" S12S-CTFPL-3 TP_32_ - - HC12 CS126 CLP12 - L-W4 S12S-CTFPR-3 TP_32_ - - HC12 CS126 CLP12 - L-W4 S16T-CTFPR-3 TP_32_ SM-41 TS-44-2 HC12 CS126 CLP12 T10 L-W4 S20U-CTFPR-3 TP_32_ SM-41 TS-44-2 HC12 CS126 CLP12 T10 L-W4 S24U-CTFPR-3 TP_32_ SM-41 TS-44-2 HC12 CS126 CLP12 T10 L-W4 S24U-CTFPR-4 TP_43_ SM-37 TS-6 HC12 CS126 CLP12 T20 L-W4 1115
