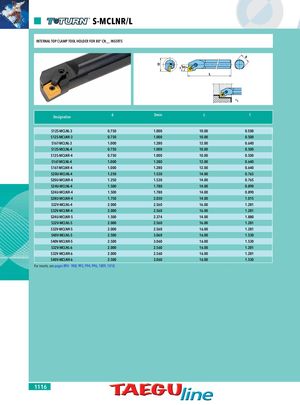

S-MCLNR/L MULTI LOCK/BORING BARS INPATERRTNSAELRTIOESP CLAMP TOOL HOLDER FOR 80° CN__ INSERTS d D f 95° L Designation d Dmin L f S12S-MCLNL-3 0.750 1.000 10.00 0.500 S12S-MCLNR-3 0.750 1.000 10.00 0.500 S16T-MCLNL-3 1.000 1.280 12.00 0.640 S12S-MCLNL-4 0.750 1.000 10.00 0.500 S12S-MCLNR-4 0.750 1.000 10.00 0.500 S16T-MCLNL-4 1.000 1.280 12.00 0.640 S16T-MCLNR-4 1.000 1.280 12.00 0.640 S20U-MCLNL-4 1.250 1.530 14.00 0.765 S20U-MCLNR-4 1.250 1.530 14.00 0.765 S24U-MCLNL-4 1.500 1.780 14.00 0.890 S24U-MCLNR-4 1.500 1.780 14.00 0.890 S28U-MCLNR-4 1.750 2.030 14.00 1.015 S32V-MCLNL-4 2.000 2.560 16.00 1.281 S32V-MCLNR-4 2.000 2.560 16.00 1.281 S24U-MCLNR-5 1.500 2.374 14.00 1.880 S32V-MCLNL-5 2.000 2.560 16.00 1.281 S32V-MCLNR-5 2.000 2.560 16.00 1.281 S40V-MCLNL-5 2.500 3.060 16.00 1.530 S40V-MCLNR-5 2.500 3.060 16.00 1.530 S32V-MCLNL-6 2.000 2.560 16.00 1.281 S32V-MCLNR-6 2.000 2.560 16.00 1.281 S40V-MCLNR-6 2.500 3.060 16.00 1.530 For inserts, see pages 894 - 908, 993, 994, 996, 1009, 1018. 1116
