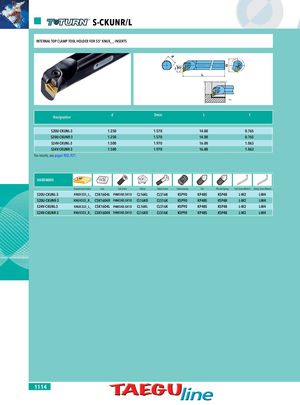

S-CKUNR/L TOP CLAMP/BORING BARS INPATERRTNSAELRTIOESP CLAMP TOOL HOLDER FOR 55° KNUX__ INSERTS d f 93° D L Designation d Dmin L f S20U-CKUNL-3 1.250 1.570 14.00 0.765 S20U-CKUNR-3 1.250 1.570 14.00 0.765 S24V-CKUNL-3 1.500 1.970 16.00 1.063 S24V-CKUNR-3 1.500 1.970 16.00 1.063 For inserts, see pages 920, 921. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Pin Pin and Spring Seat Screw Wrench Clamp Screw Wrench S20U-CKUNL-3 KNUX333_L_ CSK1604L FHM3X0.5X10 CL16KL CLS16K KSP90 KP48S KSP48 L-W2 L-W4 S20U-CKUNR-3 KNUX333_R_ CSK1604R FHM3X0.5X10 CL16KR CLS16K KSP90 KP48S KSP48 L-W2 L-W4 S24V-CKUNL-3 KNUX333_L_ CSK1604L FHM3X0.5X10 CL16KL CLS16K KSP90 KP48S KSP48 L-W2 L-W4 S24V-CKUNR-3 KNUX333_R_ CSK1604R FHM3X0.5X10 CL16KR CLS16K KSP90 KP48S KSP48 L-W2 L-W4 1114
