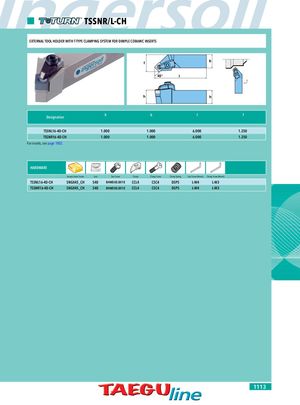

TSSNR/L-CH EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR DIMPLE CERAMIC INSERTS f b 45° l h h Designation h b l f TSSNL16-4D-CH 1.000 1.000 6.000 1.250 TSSNR16-4D-CH 1.000 1.000 6.000 1.250 For inserts, see page 1002. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Seat Screw Wrench Clamp Screw Wrench TSSNL16-4D-CH SNGX45_CH S40 BHM5X0.8X10 CCL4 CSC4 DSP5 L-W4 L-W3 TSSNR16-4D-CH SNGX45_CH S40 BHM5X0.8X10 CCL4 CSC4 DSP5 L-W4 L-W3 1113
