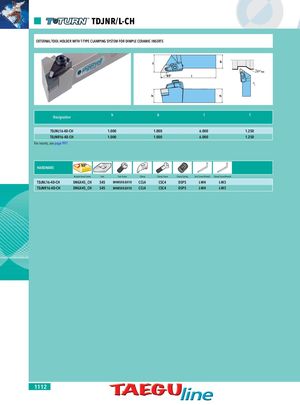

TDJNR/L-CH EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR DIMPLE CERAMIC INSERTS f b 93° l h h Designation h b l f TDJNL16-4D-CH 1.000 1.000 6.000 1.250 TDJNR16-4D-CH 1.000 1.000 6.000 1.250 For inserts, see page 997. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Seat Screw Wrench Clamp Screw Wrench TDJNL16-4D-CH DNGX45_CH S45 BHM5X0.8X10 CCL4 CSC4 DSP5 L-W4 L-W3 TDJNR16-4D-CH DNGX45_CH S45 BHM5X0.8X10 CCL4 CSC4 DSP5 L-W4 L-W3 1112
