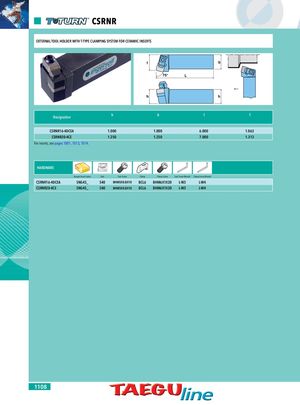

CSRNR EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR CERAMIC INSERTS f b 75° L h h Designation h b l f CSRNR16-4DCEA 1.000 1.000 6.000 1.063 CSRNR20-4CE 1.250 1.250 7.000 1.313 For inserts, see pages 1001, 1013, 1014. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Seat Screw Wrench Clamp Screw Wrench CSRNR16-4DCEA SNG43_ S40 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CSRNR20-4CE SNG45_ S40 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 1108
