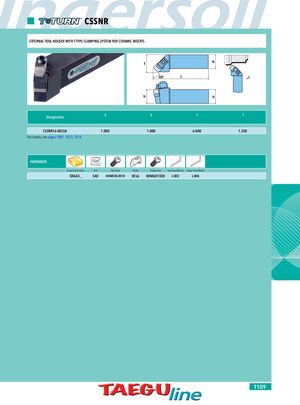

CSSNR EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR CERAMIC INSERTS f b 45° l h h Designation h b l f CSSNR16-4DCEA 1.000 1.000 6.000 1.250 For inserts, see pages 1001, 1013, 1014. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Seat Screw Wrench Clamp Screw Wrench SNG43_ S40 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 1109
