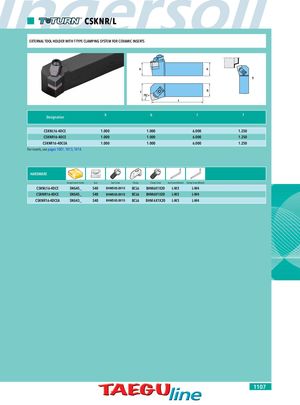

CSKNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR CERAMIC INSERTS h h f b 75° l Designation h b l f CSKNL16-4DCE 1.000 1.000 6.000 1.250 CSKNR16-4DCE 1.000 1.000 6.000 1.250 CSKNR16-4DCEA 1.000 1.000 6.000 1.250 For inserts, see pages 1001, 1013, 1014. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Seat Screw Wrench Clamp Screw Wrench CSKNL16-4DCE SNG45_ S40 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CSKNR16-4DCE SNG45_ S40 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CSKNR16-4DCEA SNG43_ S40 BHM5X0.8X10 BCL6 BHM 6X1X20 L-W3 L-W4 1107
