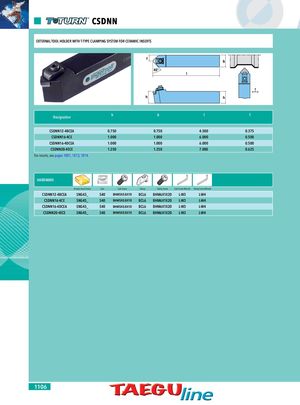

CSDNN EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR CERAMIC INSERTS f b 45° l h h Designation h b l f CSDNN12-4BCEA 0.750 0.750 4.500 0.375 CSDNN16-4CE 1.000 1.000 6.000 0.500 CSDNN16-4DCEA 1.000 1.000 6.000 0.500 CSDNN20-4ECE 1.250 1.250 7.000 0.625 For inserts, see pages 1001, 1013, 1014. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Seat Screw Wrench Clamp Screw Wrench CSDNN12-4BCEA SNG43_ S40 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CSDNN16-4CE SNG45_ S40 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CSDNN16-4DCEA SNG43_ S40 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CSDNN20-4ECE SNG45_ S40 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 1106
