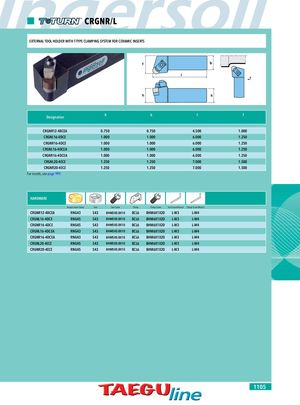

CRGNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR CERAMIC INSERTS f b l h h Designation h b l f CRGNR12-4BCEA 0.750 0.750 4.500 1.000 CRGNL16-4DCE 1.000 1.000 6.000 1.250 CRGNR16-4DCE 1.000 1.000 6.000 1.250 CRGNL16-4DCEA 1.000 1.000 6.000 1.250 CRGNR16-4DCEA 1.000 1.000 6.000 1.250 CRGNL20-4ECE 1.250 1.250 7.000 1.500 CRGNR20-4ECE 1.250 1.250 7.000 1.500 For inserts, see page 999. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Seat Screw Wrench Clamp Screw Wrench CRGNR12-4BCEA RNG43 S43 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CRGNL16-4DCE RNG45 S43 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CRGNR16-4DCE RNG45 S43 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CRGNL16-4DCEA RNG43 S43 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CRGNR16-4DCEA RNG43 S43 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CRGNL20-4ECE RNG45 S43 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CRGNR20-4ECE RNG45 S43 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 1105
