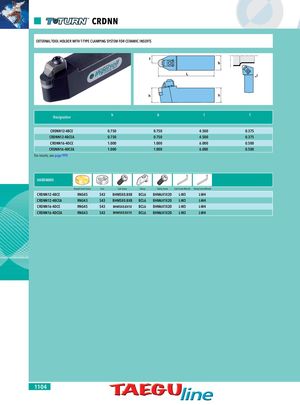

CRDNN EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR CERAMIC INSERTS f b L h h Designation h b l f CRDNN12-4BCE 0.750 0.750 4.500 0.375 CRDNN12-4BCEA 0.750 0.750 4.500 0.375 CRDNN16-4DCE 1.000 1.000 6.000 0.500 CRDNN16-4DCEA 1.000 1.000 6.000 0.500 For inserts, see page 999. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Seat Screw Wrench Clamp Screw Wrench CRDNN12-4BCE RNG45 S43 BHM5X0.8X8 BCL6 BHM6X1X20 L-W3 L-W4 CRDNN12-4BCEA RNG43 S43 BHM5X0.8X8 BCL6 BHM6X1X20 L-W3 L-W4 CRDNN16-4DCE RNG45 S43 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CRDNN16-4DCEA RNG43 S43 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 1104
