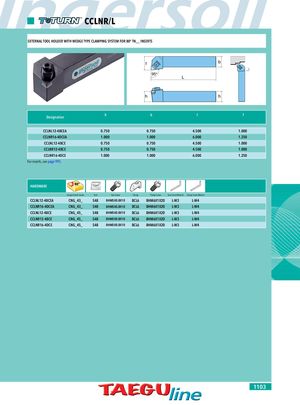

CCLNR/L TOP CLAMP/EXTERNAL EXTERNAL TOOL HOLDER WITH WEDGE TYPE CLAMPING SYSTEM FOR 80° TN__ INSERTS TOOLHOLDERS FOR CBN & f b 95° L h h Designation h b l f CCLNL12-4BCEA 0.750 0.750 4.500 1.000 CCLNR16-4DCEA 1.000 1.000 6.000 1.250 CCLNL12-4BCE 0.750 0.750 4.500 1.000 CCLNR12-4BCE 0.750 0.750 4.500 1.000 CCLNR16-4DCE 1.000 1.000 6.000 1.250 For inserts, see page 995. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Seat Screw Wrench Clamp Screw Wrench CCLNL12-4BCEA CNG_43_ S48 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CCLNR16-4DCEA CNG_43_ S48 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CCLNL12-4BCE CNG_45_ S48 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CCLNR12-4BCE CNG_45_ S48 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CCLNR16-4DCE CNG_45_ S48 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 1103
