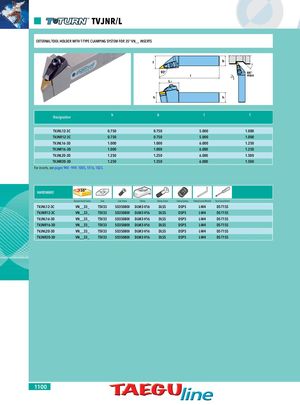

TVJNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 35° VN__ INSERTS f b 93° 44° l max L1 h h Designation h b l f TVJNL12-3C 0.750 0.750 5.000 1.000 TVJNR12-3C 0.750 0.750 5.000 1.000 TVJNL16-3D 1.000 1.000 6.000 1.250 TVJNR16-3D 1.000 1.000 6.000 1.250 TVJNL20-3D 1.250 1.250 6.000 1.500 TVJNR20-3D 1.250 1.250 6.000 1.500 For inserts, see pages 944 - 949, 1005, 1016, 1023. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TVJNL12-3C VN__33_ TSV33 SO35080I DLM3-V16 DLS5 DSP5 L-W4 DS-T15S TVJNR12-3C VN__33_ TSV33 SO35080I DLM3-V16 DLS5 DSP5 L-W4 DS-T15S TVJNL16-3D VN__33_ TSV33 SO35080I DLM3-V16 DLS5 DSP5 L-W4 DS-T15S TVJNR16-3D VN__33_ TSV33 SO35080I DLM3-V16 DLS5 DSP5 L-W4 DS-T15S TVJNL20-3D VN__33_ TSV33 SO35080I DLM3-V16 DLS5 DSP5 L-W4 DS-T15S TVJNR20-3D VN__33_ TSV33 SO35080I DLM3-V16 DLS5 DSP5 L-W4 DS-T15S 1100
