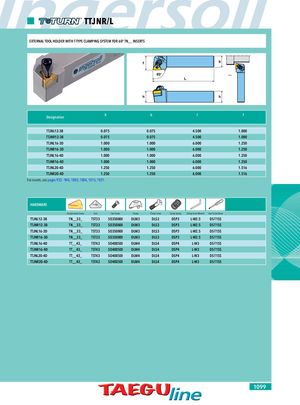

TTJNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 60° TN__ INSERTS f b 93° L h h Designation h b l f TTJNL12-3B 0.075 0.075 4.500 1.000 TTJNR12-3B 0.075 0.075 4.500 1.000 TTJNL16-3D 1.000 1.000 6.000 1.250 TTJNR16-3D 1.000 1.000 6.000 1.250 TTJNL16-4D 1.000 1.000 6.000 1.250 TTJNR16-4D 1.000 1.000 6.000 1.250 TTJNL20-4D 1.250 1.250 6.000 1.516 TTJNR20-4D 1.250 1.250 6.000 1.516 For inserts, see pages 932 - 944, 1003, 1004, 1015, 1021. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TTJNL12-3B TN__33_ TST33 SO35080I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TTJNR12-3B TN__33_ TST33 SO35080I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TTJNL16-3D TN__33_ TST33 SO35080I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TTJNR16-3D TN__33_ TST33 SO35080I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TTJNL16-4D TT__43_ TST43 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TTJNR16-4D TT__43_ TST43 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TTJNL20-4D TT__43_ TST43 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TTJNR20-4D TT__43_ TST43 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S 1099
