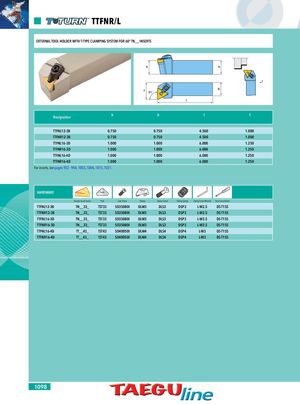

TTFNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 60° TN__ INSERTS 91˚ Designation h b l f TTFNL12-3B 0.750 0.750 4.500 1.000 TTFNR12-3B 0.750 0.750 4.500 1.000 TTFNL16-3D 1.000 1.000 6.000 1.250 TTFNR16-3D 1.000 1.000 6.000 1.250 TTFNL16-4D 1.000 1.000 6.000 1.250 TTFNR16-4D 1.000 1.000 6.000 1.250 For inserts, see pages 932 - 944, 1003, 1004, 1015, 1021. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TTFNL12-3B TN__33_ TST33 SO35080I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TTFNR12-3B TN__33_ TST33 SO35080I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TTFNL16-3D TN__33_ TST33 SO35080I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TTFNR16-3D TN__33_ TST33 SO35080I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TTFNL16-4D TT__43_ TST43 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TTFNR16-4D TT__43_ TST43 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S 1098
