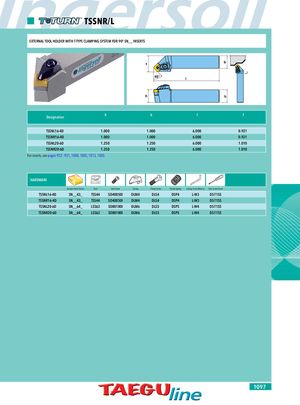

TSSNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 90° SN__ INSERTS f b 45° l h h Designation h b l f TSSNL16-4D 1.000 1.000 6.000 0.921 TSSNR16-4D 1.000 1.000 6.000 0.921 TSSNL20-6D 1.250 1.250 6.000 1.010 TSSNR20-6D 1.250 1.250 6.000 1.010 For inserts, see pages 922 - 931, 1000, 1002, 1013, 1020. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TSSNL16-4D SN__43_ TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSSNR16-4D SN__43_ TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSSNL20-6D SN__64_ LSS63 SO80180I DLM6 DLS5 DSP5 L-W4 DS-T15S TSSNR20-6D SN__64_ LSS63 SO80180I DLM6 DLS5 DSP5 L-W4 DS-T15S 1097
