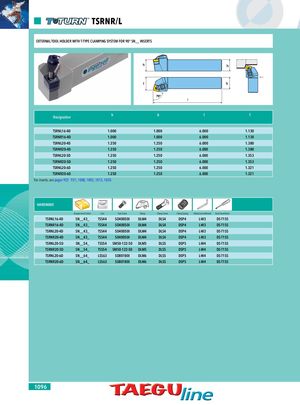

TSRNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 90° SN__ INSERTS Designation h b l f TSRNL16-4D 1.000 1.000 6.000 1.130 TSRNR16-4D 1.000 1.000 6.000 1.130 TSRNL20-4D 1.250 1.250 6.000 1.380 TSRNR20-4D 1.250 1.250 6.000 1.380 TSRNL20-5D 1.250 1.250 6.000 1.353 TSRNR20-5D 1.250 1.250 6.000 1.353 TSRNL20-6D 1.250 1.250 6.000 1.321 TSRNR20-6D 1.250 1.250 6.000 1.321 For inserts, see pages 922 - 931, 1000, 1002, 1013, 1020. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TSRNL16-4D SN__43_ TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSRNR16-4D SN__43_ TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSRNL20-4D SN__43_ TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSRNR20-4D SN__43_ TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSRNL20-5D SN__54_ TSS54 SM50-122-50 DLM5 DLS5 DSP5 L-W4 DS-T15S TSRNR20-5D SN__54_ TSS54 SM50-122-50 DLM5 DLS5 DSP5 L-W4 DS-T15S TSRNL20-6D SN__64_ LSS63 SO80180I DLM6 DLS5 DSP5 L-W4 DS-T15S TSRNR20-6D SN__64_ LSS63 SO80180I DLM6 DLS5 DSP5 L-W4 DS-T15S 1096
