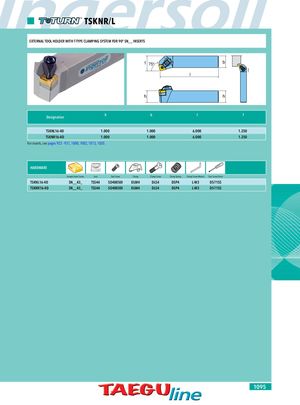

TSKNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 90° SN__ INSERTS f 75° b l h h Designation h b l f TSKNL16-4D 1.000 1.000 6.000 1.250 TSKNR16-4D 1.000 1.000 6.000 1.250 For inserts, see pages 922 - 931, 1000, 1002, 1013, 1020. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TSKNL16-4D SN__43_ TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TSKNR16-4D SN__43_ TSS44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S 1095
