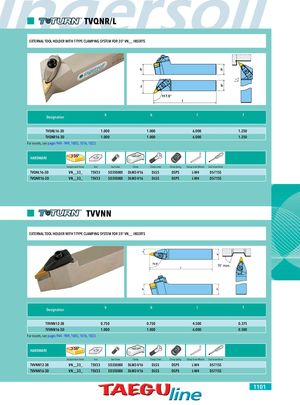

TVQNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 35° VN__ INSERTS h h f b 117.5° l Designation h b l f TVQNL16-3D 1.000 1.000 6.000 1.250 TVQNR16-3D 1.000 1.000 6.000 1.250 For inserts, see pages 944 - 949, 1005, 1016, 1023. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TVQNL16-3D VN__33_ TSV33 SO35080I DLM3-V16 DLS5 DSP5 L-W4 DS-T15S TVQNR16-3D VN__33_ TSV33 SO35080I DLM3-V16 DLS5 DSP5 L-W4 DS-T15S TVVNN EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 35° VN__ INSERTS f b 72.5° 70˚ max. l h h Designation h b l f TVVNN12-3B 0.750 0.750 4.500 0.375 TVVNN16-3D 1.000 1.000 6.000 0.500 For inserts, see pages 944 - 949, 1005, 1016, 1023. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TVVNN12-3B VN__33_ TSV33 SO35080I DLM3-V16 DLS5 DSP5 L-W4 DS-T15S TVVNN16-3D VN__33_ TSV33 SO35080I DLM3-V16 DLS5 DSP5 L-W4 DS-T15S 1101
