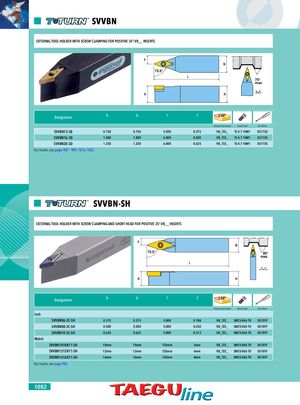

SVVBN EXTERNAL TOOL HOLDER WITH SCREW CLAMPING FOR POSITIVE 35° VB__ INSERTS f b 72.5° l 70° max h h Designation h b l f Accepts Insert Series Insert Screw Torx Driver SVVBN12-3B 0.750 0.750 4.500 0.375 VB_T33_ TS-4.7-10M1 DS-T15S SVVBN16-3D 1.000 1.000 6.000 0.500 VB_T33_ TS-4.7-10M1 DS-T15S SVVBN20-3D 1.250 1.250 6.000 0.625 VB_T33_ TS-4.7-10M1 DS-T15S For inserts, see pages 987 - 989, 1016, 1022. SVVBN-SH EXTERNAL TOOL HOLDER WITH SCREW CLAMPING AND SHORT HEAD FOR POSITIVE 35° VB__ INSERTS f b 72.5° 60° max. l h h Designation h b l f Accepts Insert Series Insert Screw Torx Driver Inch SVVBN06-2C-SH 0.375 0.375 5.000 0.188 VB_T22_ SM25-065-70 DS-T07F SVVBN08-2C-SH 0.500 0.500 5.000 0.250 VB_T22_ SM25-065-70 DS-T07F SVVBN10-2C-SH 0.625 0.625 5.000 0.313 VB_T22_ SM25-065-70 DS-T07F Metric SVVBN1010K11-SH 10mm 10mm 125mm 5mm VB_T22_ SM25-065-70 DS-T07F SVVBN1212K11-SH 12mm 12mm 125mm 6mm VB_T22_ SM25-065-70 DS-T07F SVVBN1616K11-SH 16mm 16mm 125mm 8mm VB_T22_ SM25-065-70 DS-T07F For inserts, see page 986. 1082
