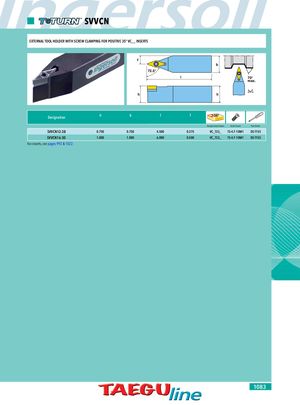

SVVCN EXTERNAL TOOL HOLDER WITH SCREW CLAMPING FOR POSITIVE 35° VC__ INSERTS f b 72.5° l 70° max. h h Designation h b l f Accepts Insert Series Insert Screw Torx Driver SVVCN12-3B 0.750 0.750 4.500 0.375 VC_T33_ TS-4.7-10M1 DS-T15S SVVCN16-3D 1.000 1.000 6.000 0.500 VC_T33_ TS-4.7-10M1 DS-T15S For inserts, see pages 992 & 1022. 1083
