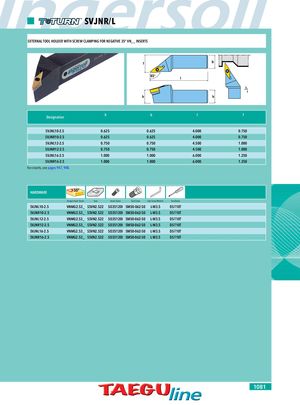

SVJNR/L EXTERNAL TOOL HOLDER WITH SCREW CLAMPING FOR NEGATIVE 35° VN__ INSERTS f b 93° l h h Designation h b l f SVJNL10-2.5 0.625 0.625 4.000 0.750 SVJNR10-2.5 0.625 0.625 4.000 0.750 SVJNL12-2.5 0.750 0.750 4.500 1.000 SVJNR12-2.5 0.750 0.750 4.500 1.000 SVJNL16-2.5 1.000 1.000 6.000 1.250 SVJNR16-2.5 1.000 1.000 6.000 1.250 For inserts, see pages 947, 948. HARDWARE Accepts Insert Series Seat Insert Screw Seat Screw Seat Screw Wrench Torx Driver SVJNL10-2.5 VNMG2.53_ SSVN2.522 SO35120I SM50-062-S0 L-W3.5 DS-T10T SVJNR10-2.5 VNMG2.53_ SSVN2.522 SO35120I SM50-062-S0 L-W3.5 DS-T10T SVJNL12-2.5 VNMG2.53_ SSVN2.522 SO35120I SM50-062-S0 L-W3.5 DS-T10T SVJNR12-2.5 VNMG2.53_ SSVN2.522 SO35120I SM50-062-S0 L-W3.5 DS-T10T SVJNL16-2.5 VNMG2.53_ SSVN2.522 SO35120I SM50-062-S0 L-W3.5 DS-T10T SVJNR16-2.5 VNMG2.53_ SSVN2.522 SO35120I SM50-062-S0 L-W3.5 DS-T10T 1081
