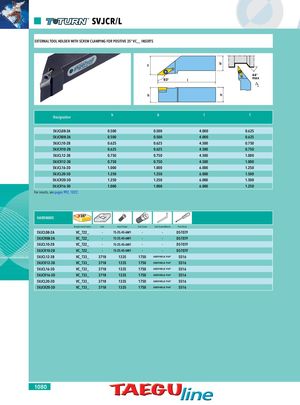

SVJCR/L EXTERNAL TOOL HOLDER WITH SCREW CLAMPING FOR POSITIVE 35° VC__ INSERTS f b 44° 93° l max h h Designation h b l f SVJCL08-2A 0.500 0.500 4.000 0.625 SVJCR08-2A 0.500 0.500 4.000 0.625 SVJCL10-2B 0.625 0.625 4.500 0.750 SVJCR10-2B 0.625 0.625 4.500 0.750 SVJCL12-3B 0.750 0.750 4.500 1.000 SVJCR12-3B 0.750 0.750 4.500 1.000 SVJCL16-3D 1.000 1.000 6.000 1.250 SVJCL20-3D 1.250 1.250 6.000 1.500 SVJCR20-3D 1.250 1.250 6.000 1.500 SVJCR16-3D 1.000 1.000 6.000 1.250 For inserts, see pages 992, 1022. HARDWARE Accepts Insert Series Seat Insert Screw Seat Screw Seat Screw Wrench Torx Driver SVJCL08-2A VC_T22_ - TS-25.45-6M1 - - DS-T07F SVJCR08-2A VC_T22_ - TS-25.45-6M1 - - DS-T07F SVJCL10-2B VC_T22_ - TS-25.45-6M1 - - DS-T07F SVJCR10-2B VC_T22_ - TS-25.45-6M1 - - DS-T07F SVJCL12-3B VC_T33_ 3718 1335 1750 AG00140LLA 9/64" 5516 SVJCR12-3B VC_T33_ 3718 1335 1750 AG00140LLA 9/64" 5516 SVJCL16-3D VC_T33_ 3718 1335 1750 AG00140LLA 9/64" 5516 SVJCR16-3D VC_T33_ 3718 1335 1750 AG00140LLA 9/64" 5516 SVJCL20-3D VC_T33_ 3718 1335 1750 AG00140LLA 9/64" 5516 SVJCR20-3D VC_T33_ 3718 1335 1750 AG00140LLA 9/64" 5516 1080
