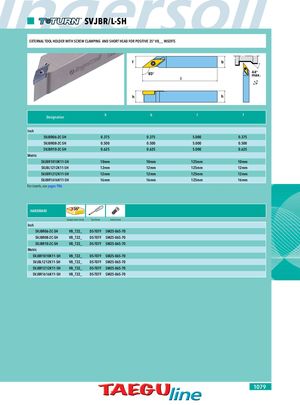

SVJBR/L-SH EXTERNAL TOOL HOLDER WITH SCREW CLAMPING AND SHORT HEAD FOR POSITIVE 35° VB__ INSERTS f b 93° 44°max. l h h Designation h b l f Inch SVJBR06-2C-SH 0.375 0.375 5.000 0.375 SVJBR08-2C-SH 0.500 0.500 5.000 0.500 SVJBR10-2C-SH 0.625 0.625 5.000 0.625 Metric SVJBR1010K11-SH 10mm 10mm 125mm 10mm SVJBL1212K11-SH 12mm 12mm 125mm 12mm SVJBR1212K11-SH 12mm 12mm 125mm 12mm SVJBR1616K11-SH 16mm 16mm 125mm 16mm For inserts, see pages 986. HARDWARE Accepts Insert Series Torx Driver Indert Screw Inch SVJBR06-2C-SH VB_T22_ DS-T07F SM25-065-70 SVJBR08-2C-SH VB_T22_ DS-T07F SM25-065-70 SVJBR10-2C-SH VB_T22_ DS-T07F SM25-065-70 Metric SVJBR1010K11-SH VB_T22_ DS-T07F SM25-065-70 SVJBL1212K11-SH VB_T22_ DS-T07F SM25-065-70 SVJBR1212K11-SH VB_T22_ DS-T07F SM25-065-70 SVJBR1616K11-SH VB_T22_ DS-T07F SM25-065-70 1079
