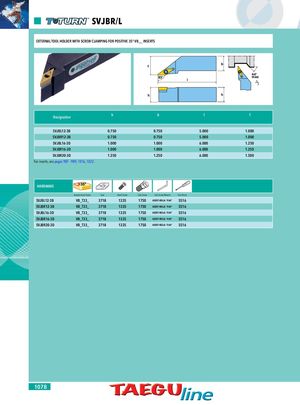

SVJBR/L EXTERNAL TOOL HOLDER WITH SCREW CLAMPING FOR POSITIVE 35° VB__ INSERTS f b 44° 93° max l h h Designation h b l f SVJBL12-3B 0.750 0.750 5.000 1.000 SVJBR12-3B 0.750 0.750 5.000 1.000 SVJBL16-3D 1.000 1.000 6.000 1.250 SVJBR16-3D 1.000 1.000 6.000 1.250 SVJBR20-3D 1.250 1.250 6.000 1.500 For inserts, see pages 987 - 989, 1016, 1022. HARDWARE Accepts Insert Series Seat Insert Screw Seat Screw Seat Screw Wrench Torx Driver SVJBL12-3B VB_T33_ 3718 1335 1750 AG00140LLA 9/64" 5516 SVJBR12-3B VB_T33_ 3718 1335 1750 AG00140LLA 9/64" 5516 SVJBL16-3D VB_T33_ 3718 1335 1750 AG00140LLA 9/64" 5516 SVJBR16-3D VB_T33_ 3718 1335 1750 AG00140LLA 9/64" 5516 SVJBR20-3D VB_T33_ 3718 1335 1750 AG00140LLA 9/64" 5516 1078
