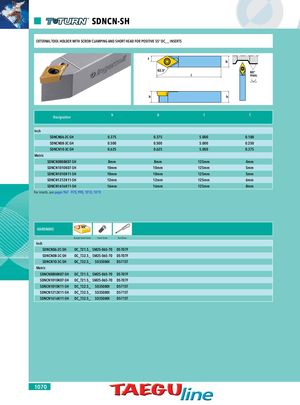

SDNCN-SH EXTERNAL TOOL HOLDER WITH SCREW CLAMPING AND SHORT HEAD FOR POSITIVE 55° DC__ INSERTS f b 62.5° 60° l max. h h Designation h b l f Inch SDNCN06-2C-SH 0.375 0.375 5.000 0.188 SDNCN08-3C-SH 0.500 0.500 5.000 0.250 SDNCN10-3C-SH 0.625 0.625 5.000 0.375 Metric SDNCN0808K07-SH 8mm 8mm 125mm 4mm SDNCN1010K07-SH 10mm 10mm 125mm 5mm SDNCN1010K11-SH 10mm 10mm 125mm 5mm SDNCN1212K11-SH 12mm 12mm 125mm 6mm SDNCN1616K11-SH 16mm 16mm 125mm 8mm For inserts, see pages 967 - 970, 990, 1010, 1019. HARDWARE Accepts Insert Series Insert Screw Torx Driver Inch SDNCN06-2C-SH DC_T21.5_ SM25-065-70 DS-T07F SDNCN08-3C-SH DC_T32.5_ SM25-065-70 DS-T07F SDNCN10-3C-SH DC_T32.5_ SO35080I DS-T15T Metric SDNCN0808K07-SH DC_T21.5_ SM25-065-70 DS-T07F SDNCN1010K07-SH DC_T21.5_ SM25-065-70 DS-T07F SDNCN1010K11-SH DC_T32.5_ SO35080I DS-T15T SDNCN1212K11-SH DC_T32.5_ SO35080I DS-T15T SDNCN1616K11-SH DC_T32.5_ SO35080I DS-T15T 1070
