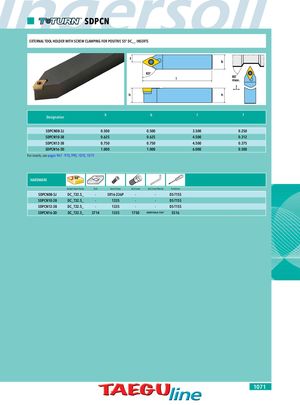

SDPCN EXTERNAL TOOL HOLDER WITH SCREW CLAMPING FOR POSITIVE 55° DC__ INSERTS f b 63° l 60˚max. h h Designation h b l f SDPCN08-3J 0.500 0.500 3.500 0.250 SDPCN10-3B 0.625 0.625 4.500 0.312 SDPCN12-3B 0.750 0.750 4.500 0.375 SDPCN16-3D 1.000 1.000 6.000 0.500 For inserts, see pages 967 - 970, 990, 1010, 1019. HARDWARE Accepts Insert Series Seat Insert Screw Seat Screw Seat Screw Wrench Torx Driver SDPCN08-3J DC_T32.5_ - SR16-236P - - DS-T15S SDPCN10-3B DC_T32.5_ - 1335 - - DS-T15S SDPCN12-3B DC_T32.5_ - 1335 - - DS-T15S SDPCN16-3D DC_T32.5_ 3714 1335 1750 AG00140LLA 9/64" 5516 1071
