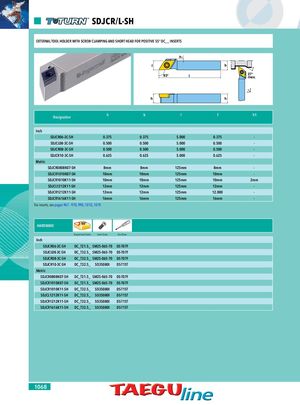

SDJCR/L-SH EXTERNAL TOOL HOLDER WITH SCREW CLAMPING AND SHORT HEAD FOR POSITIVE 55° DC__ INSERTS h1 f b 93° l 27°max. h h Designation h b l f h1 Inch SDJCR06-2C-SH 0.375 0.375 5.000 0.375 - SDJCL08-3C-SH 0.500 0.500 5.000 0.500 - SDJCR08-3C-SH 0.500 0.500 5.000 0.500 - SDJCR10-3C-SH 0.625 0.625 5.000 0.625 - Metric SDJCR0808K07-SH 8mm 8mm 125mm 8mm - SDJCR1010K07-SH 10mm 10mm 125mm 10mm - SDJCR1010K11-SH 10mm 10mm 125mm 10mm 2mm SDJCL1212K11-SH 12mm 12mm 125mm 12mm - SDJCR1212K11-SH 12mm 12mm 125mm 12.000 - SDJCR1616K11-SH 16mm 16mm 125mm 16mm - For inserts, see pages 967 - 970, 990, 1010, 1019. HARDWARE Accepts Insert Series Insert Screw Torx Driver Inch SDJCR06-2C-SH DC_T21.5_ SM25-065-70 DS-T07F SDJCL08-3C-SH DC_T32.5_ SM25-065-70 DS-T07F SDJCR08-3C-SH DC_T32.5_ SM25-065-70 DS-T07F SDJCR10-3C-SH DC_T32.5_ SO35080I DS-T15T Metric SDJCR0808K07-SH DC_T21.5_ SM25-065-70 DS-T07F SDJCR1010K07-SH DC_T21.5_ SM25-065-70 DS-T07F SDJCR1010K11-SH DC_T32.5_ SO35080I DS-T15T SDJCL1212K11-SH DC_T32.5_ SO35080I DS-T15T SDJCR1212K11-SH DC_T32.5_ SO35080I DS-T15T SDJCR1616K11-SH DC_T32.5_ SO35080I DS-T15T 1068
