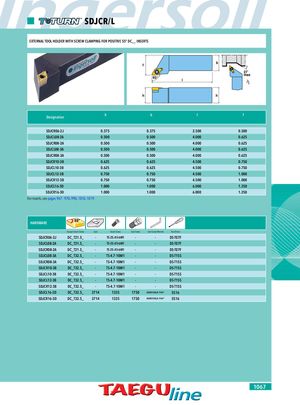

SDJCR/L EXTERNAL TOOL HOLDER WITH SCREW CLAMPING FOR POSITIVE 55° DC__ INSERTS f b 27˚ max 93° l h h Designation h b l f SDJCR06-2J 0.375 0.375 2.500 0.500 SDJCL08-2A 0.500 0.500 4.000 0.625 SDJCR08-2A 0.500 0.500 4.000 0.625 SDJCL08-3A 0.500 0.500 4.000 0.625 SDJCR08-3A 0.500 0.500 4.000 0.625 SDJCR10-3B 0.625 0.625 4.500 0.750 SDJCL10-3B 0.625 0.625 4.500 0.750 SDJCL12-3B 0.750 0.750 4.500 1.000 SDJCR12-3B 0.750 0.750 4.500 1.000 SDJCL16-3D 1.000 1.000 6.000 1.250 SDJCR16-3D 1.000 1.000 6.000 1.250 For inserts, see pages 967 - 970, 990, 1010, 1019. HARDWARE Accepts Insert Series Seat Insert Screw Seat Screw Seat Screw Wrench Torx Driver SDJCR06-2J DC_T21.5_ - TS-25.45-6M1 - - DS-T07F SDJCL08-2A DC_T21.5_ - TS-25.45-6M1 - - DS-T07F SDJCR08-2A DC_T21.5_ - TS-25.45-6M1 - - DS-T07F SDJCL08-3A DC_T32.5_ - TS-4.7-10M1 - - DS-T15S SDJCR08-3A DC_T32.5_ - TS-4.7-10M1 - - DS-T15S SDJCR10-3B DC_T32.5_ - TS-4.7-10M1 - - DS-T15S SDJCL10-3B DC_T32.5_ - TS-4.7-10M1 - - DS-T15S SDJCL12-3B DC_T32.5_ - TS-4.7-10M1 - - DS-T15S SDJCR12-3B DC_T32.5_ - TS-4.7-10M1 - - DS-T15S SDJCL16-3D DC_T32.5_ 3714 1335 1750 AG00140LLA 9/64" 5516 SDJCR16-3D DC_T32.5_ 3714 1335 1750 AG00140LLA 9/64" 5516 1067
