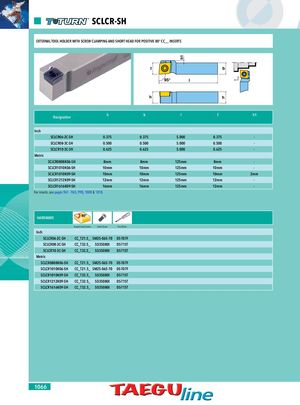

h1 SCLCR-SH EXTERNAL TOOL HOLDER WITH SCREW CLAMPING AND SHORT HEAD FOR POSITIVE 80° CC__ INSERTS f b 95° l h h Designation h b l f h1 Inch SCLCR06-2C-SH 0.375 0.375 5.000 0.375 - SCLCR08-3C-SH 0.500 0.500 5.000 0.500 - SCLCR10-3C-SH 0.625 0.625 5.000 0.625 - Metric SCLCR0808K06-SH 8mm 8mm 125mm 8mm - SCLCR1010K06-SH 10mm 10mm 125mm 10mm - SCLCR1010K09-SH 10mm 10mm 125mm 10mm 2mm SCLCR1212K09-SH 12mm 12mm 125mm 12mm - SCLCR1616K09-SH 16mm 16mm 125mm 12mm - For inserts, see pages 961 - 965, 990, 1008 & 1018. HARDWARE Accepts Insert Series Insert Screw Torx Driver Inch SCLCR06-2C-SH CC_T21.5_ SM25-065-70 DS-T07F SCLCR08-3C-SH CC_T32.5_ SO35080I DS-T15T SCLCR10-3C-SH CC_T32.5_ SO35080I DS-T15T Metric SCLCR0808K06-SH CC_T21.5_ SM25-065-70 DS-T07F SCLCR1010K06-SH CC_T21.5_ SM25-065-70 DS-T07F SCLCR1010K09-SH CC_T32.5_ SO35080I DS-T15T SCLCR1212K09-SH CC_T32.5_ SO35080I DS-T15T SCLCR1616K09-SH CC_T32.5_ SO35080I DS-T15T 1066
