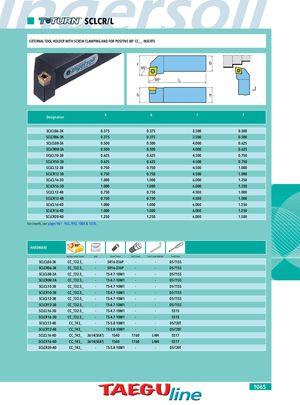

SCLCR/L EXTERNAL TOOL HOLDER WITH SCREW CLAMPING AND FOR POSITIVE 80° CC__ INSERTS f b 95° 95° L h h Designation h b l f SCLCL06-3K 0.375 0.375 2.500 0.500 SCLCR06-3K 0.375 0.375 2.500 0.500 SCLCL08-3A 0.500 0.500 4.000 0.625 SCLCR08-3A 0.500 0.500 4.000 0.625 SCLCL10-3B 0.625 0.625 4.500 0.750 SCLCR10-3B 0.625 0.625 4.500 0.750 SCLCL12-3B 0.750 0.750 4.500 1.000 SCLCR12-3B 0.750 0.750 4.500 1.000 SCLCL16-3D 1.000 1.000 6.000 1.250 SCLCR16-3D 1.000 1.000 6.000 1.250 SCLCL12-4B 0.750 0.750 4.500 1.000 SCLCR12-4B 0.750 0.750 4.500 1.000 SCLCL16-4D 1.000 1.000 6.000 1.250 SCLCR16-4D 1.000 1.000 6.000 1.250 SCLCR20-4D 1.250 1.250 6.000 1.500 For inserts, see pages 961 - 965, 990, 1008 & 1018. HARDWARE Accepts Insert Series Seat Insert Screw Seat Screw Seat Screw Wrench Torx Driver SCLCL06-3K CC_T32.5_ - SR16-236P - - DS-T15S SCLCR06-3K CC_T32.5_ - SR16-236P - - DS-T15S SCLCL08-3A CC_T32.5_ - TS-4.7-10M1 - - DS-T15S SCLCR08-3A CC_T32.5_ - TS-4.7-10M1 - - DS-T15S SCLCL10-3B CC_T32.5_ - TS-4.7-10M1 - - DS-T15S SCLCR10-3B CC_T32.5_ - TS-4.7-10M1 - - DS-T15S SCLCL12-3B CC_T32.5_ - TS-4.7-10M1 - - DS-T15S SCLCR12-3B CC_T32.5_ - TS-4.7-10M1 - - DS-T15S SCLCL16-3D CC_T32.5_ - TS-4.7-10M1 - - 5515 SCLCR16-3D CC_T32.5_ - TS-4.7-10M1 - - 5515 SCLCL12-4B CC_T43_ - TS-5.8-10M1 - - DS-T20T SCLCR12-4B CC_T43_ - TS-5.8-10M1 - - DS-T20T SCLCL16-4D CC_T43_ 3614(SEAT) 1540 1760 L-W4 5517 SCLCR16-4D CC_T43_ 3614(SEAT) 1540 1760 L-W4 5517 SCLCR20-4D CC_T43_ - TS-5.8-10M1 - - DS-T20T 1065
