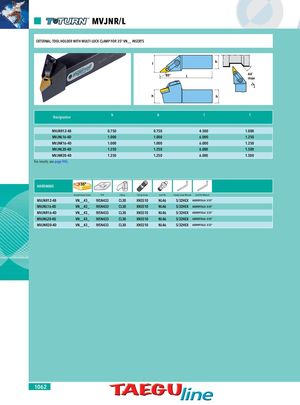

MVJNR/L EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR 35° VN__ INSERTS f b 93° l 44˚max h h Designation h b l f MVJNR12-4B 0.750 0.750 4.500 1.000 MVJNL16-4D 1.000 1.000 6.000 1.250 MVJNR16-4D 1.000 1.000 6.000 1.250 MVJNL20-4D 1.250 1.250 6.000 1.500 MVJNR20-4D 1.250 1.250 6.000 1.500 For inserts, see page 945. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench MVJNR12-4B VN__43_ IVSN433 CL30 XNS510 NL46 5/32HEX AG00093LLA 3/32" MVJNL16-4D VN__43_ IVSN433 CL30 XNS510 NL46 5/32HEX AG00093LLA 3/32" MVJNR16-4D VN__43_ IVSN433 CL30 XNS510 NL46 5/32HEX AG00093LLA 3/32" MVJNL20-4D VN__43_ IVSN433 CL30 XNS510 NL46 5/32HEX AG00093LLA 3/32" MVJNR20-4D VN__43_ IVSN433 CL30 XNS510 NL46 5/32HEX AG00093LLA 3/32" 1062
