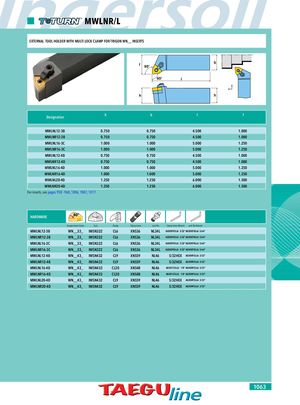

MWLNR/L EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR TRIGON WN__ INSERTS f 95° b 95° l h h Designation h b l f MWLNL12-3B 0.750 0.750 4.500 1.000 MWLNR12-3B 0.750 0.750 4.500 1.000 MWLNL16-3C 1.000 1.000 5.000 1.250 MWLNR16-3C 1.000 1.000 5.000 1.250 MWLNL12-4B 0.750 0.750 4.500 1.000 MWLNR12-4B 0.750 0.750 4.500 1.000 MWLNL16-4D 1.000 1.000 5.000 1.250 MWLNR16-4D 1.000 1.000 5.000 1.250 MWLNL20-4D 1.250 1.250 6.000 1.500 MWLNR20-4D 1.250 1.250 6.000 1.500 For inserts, see pages 950 - 960, 1006, 1007, 1017. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench MWLNL12-3B WN__33_ IWSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MWLNR12-3B WN__33_ IWSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MWLNL16-3C WN__33_ IWSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MWLNR16-3C WN__33_ IWSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MWLNL12-4B WN__43_ IWSN432 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" MWLNR12-4B WN__43_ IWSN432 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" MWLNL16-4D WN__43_ IWSN433 CL20 XNS48 NL46 AG00125LLA 1/8" AG00093LLA 3/32" MWLNR16-4D WN__43_ IWSN433 CL20 XNS48 NL46 AG00125LLA 1/8" AG00093LLA 3/32" MWLNL20-4D WN__43_ IWSN432 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" MWLNR20-4D WN__43_ IWSN432 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" 1063
