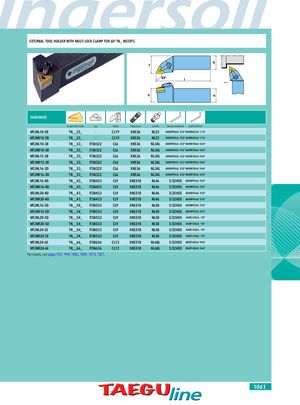

EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR 60° TN_ INSERTS b f 93° l h h HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench MTJNL10-2B TN__22_ - CL19 XNS36 NL23 AG00093LLA 3/32"AG00062LLA 1/16" MTJNR10-2B TN__22_ - CL19 XNS36 NL23 AG00093LLA 3/32"AG00062LLA 1/16" MTJNL10-3B TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MTJNR10-3B TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MTJNL12-3B TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MTJNR12-3B TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MTJNL16-3D TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MTJNR16-3D TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MTJNL16-4D TN__43_ ITSN433 CL9 XNS510 NL46 5/32HEX AG00093LLA 3/32" MTJNR16-4D TN__43_ ITSN433 CL9 XNS510 NL46 5/32HEX AG00093LLA 3/32" MTJNL20-4D TN__43_ ITSN433 CL9 XNS510 NL46 5/32HEX AG00093LLA 3/32" MTJNR20-4D TN__43_ ITSN433 CL9 XNS510 NL46 5/32HEX AG00093LLA 3/32" MTJNL16-5D TN__54_ ITSN533 CL9 XNS510 NL58 5/32HEX AG00093LLA 3/32" MTJNR16-5D TN__54_ ITSN533 CL9 XNS510 NL58 5/32HEX AG00093LLA 3/32" MTJNL20-5D TN__54_ ITSN533 CL9 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTJNR20-5D TN__54_ ITSN533 CL9 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTJNL24-5E TN__54_ ITSN533 CL9 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTJNR24-5E TN__54_ ITSN533 CL9 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTJNL24-6E TN__66_ ITSN636 CL12 XNS510 NL68L 5/32HEX AG00140LLA 9/64" MTJNR24-6E TN__66_ ITSN636 CL12 XNS510 NL68L 5/32HEX AG00140LLA 9/64" For inserts, see pages 932 - 944, 1003, 1004, 1015, 1021. 1061
