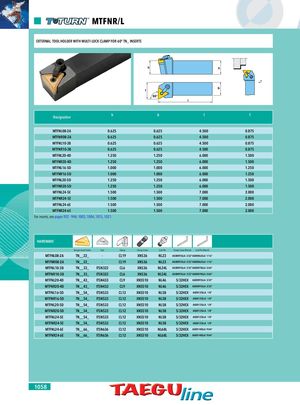

MTFNR/L EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR 60° TN_ INSERTS h h b f 90° l Designation h b l f MTFNL08-2A 0.625 0.625 4.500 0.875 MTFNR08-2A 0.625 0.625 4.500 0.875 MTFNL10-3B 0.625 0.625 4.500 0.875 MTFNR10-3B 0.625 0.625 4.500 0.875 MTFNL20-4D 1.250 1.250 6.000 1.500 MTFNR20-4D 1.250 1.250 6.000 1.500 MTFNL16-5D 1.000 1.000 6.000 1.250 MTFNR16-5D 1.000 1.000 6.000 1.250 MTFNL20-5D 1.250 1.250 6.000 1.500 MTFNR20-5D 1.250 1.250 6.000 1.500 MTFNL24-5E 1.500 1.500 7.000 2.000 MTFNR24-5E 1.500 1.500 7.000 2.000 MTFNL24-6E 1.500 1.500 7.000 2.000 MTFNR24-6E 1.500 1.500 7.000 2.000 For inserts, see pages 932 - 944, 1003, 1004, 1015, 1021. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench MTFNL08-2A TN__22_ - CL19 XNS36 NL23 AG00093LLA 3/32"AG00062LLA 1/16" MTFNR08-2A TN__22_ - CL19 XNS36 NL23 AG00093LLA 3/32"AG00062LLA 1/16" MTFNL10-3B TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MTFNR10-3B TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MTFNL20-4D TN__43_ ITSN433 CL9 XNS510 NL46 5/32HEX AG00093LLA 3/32" MTFNR20-4D TN__43_ ITSN433 CL9 XNS510 NL46 5/32HEX AG00093LLA 3/32" MTFNL16-5D TN__54_ ITSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTFNR16-5D TN__54_ ITSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTFNL20-5D TN__54_ ITSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTFNR20-5D TN__54_ ITSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTFNL24-5E TN__54_ ITSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTFNR24-5E TN__54_ ITSN533 CL12 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTFNL24-6E TN__66_ ITSN636 CL12 XNS510 NL68L 5/32HEX AG00140LLA 9/64" MTFNR24-6E TN__66_ ITSN636 CL12 XNS510 NL68L 5/32HEX AG00140LLA 9/64" 1058
