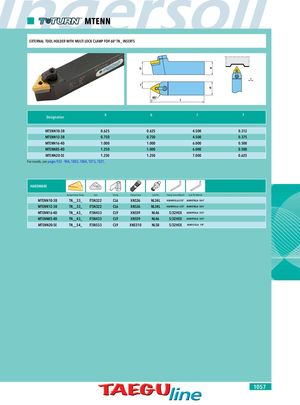

MTENN EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR 60° TN_ INSERTS h h f b 60° l Designation h b l f MTENN10-3B 0.625 0.625 4.500 0.312 MTENN12-3B 0.750 0.750 4.500 0.375 MTENN16-4D 1.000 1.000 6.000 0.500 MTENN85-4D 1.250 1.000 6.000 0.500 MTENN20-5E 1.250 1.250 7.000 0.625 For inserts, see pages 932 - 944, 1003, 1004, 1015, 1021. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench MTENN10-3B TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32" AG00078LLA 5/64" MTENN12-3B TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32" AG00078LLA 5/64" MTENN16-4D TN__43_ ITSN433 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" MTENN85-4D TN__43_ ITSN433 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" MTENN20-5E TN__54_ ITSN533 CL9 XNS510 NL58 5/32HEX AG00125LLA 1/8" 1057
