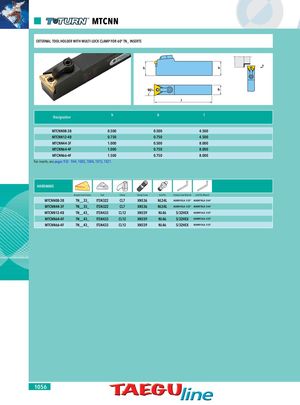

MTCNN EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR 60° TN_ INSERTS h h 90° b l Designation h b l MTCNN08-3B 0.500 0.500 4.500 MTCNN12-4B 0.750 0.750 4.500 MTCNN44-3F 1.000 0.500 8.000 MTCNN64-4F 1.000 0.750 8.000 MTCNN66-4F 1.500 0.750 8.000 For inserts, see pages 932 - 944, 1003, 1004, 1015, 1021. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench MTCNN08-3B TN__33_ ITSN322 CL7 XNS36 NL34L AG00093LLA 3/32" AG00078LLA 5/64" MTCNN44-3F TN__33_ ITSN322 CL7 XNS36 NL34L AG00093LLA 3/32" AG00078LLA 5/64" MTCNN12-4B TN__43_ ITSN433 CL12 XNS59 NL46 5/32HEX AG00093LLA 3/32" MTCNN64-4F TN__43_ ITSN433 CL12 XNS59 NL46 5/32HEX AG00093LLA 3/32" MTCNN66-4F TN__43_ ITSN433 CL12 XNS59 NL46 5/32HEX AG00093LLA 3/32" 1056
