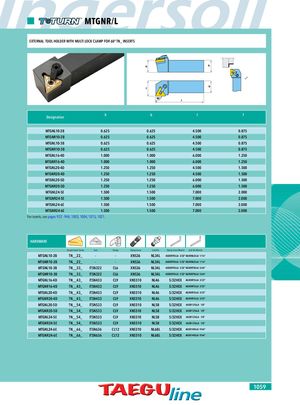

MTGNR/L EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR 60° TN_ INSERTS h h b f 90° l Designation h b l f MTGNL10-2B 0.625 0.625 4.500 0.875 MTGNR10-2B 0.625 0.625 4.500 0.875 MTGNL10-3B 0.625 0.625 4.500 0.875 MTGNR10-3B 0.625 0.625 4.500 0.875 MTGNL16-4D 1.000 1.000 6.000 1.250 MTGNR16-4D 1.000 1.000 6.000 1.250 MTGNL20-4D 1.250 1.250 4.500 1.500 MTGNR20-4D 1.250 1.250 4.500 1.500 MTGNL20-5D 1.250 1.250 6.000 1.500 MTGNR20-5D 1.250 1.250 6.000 1.500 MTGNL24-5E 1.500 1.500 7.000 2.000 MTGNR24-5E 1.500 1.500 7.000 2.000 MTGNL24-6E 1.500 1.500 7.000 2.000 MTGNR24-6E 1.500 1.500 7.000 2.000 For inserts, see pages 932 - 944, 1003, 1004, 1015, 1021. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench MTGNL10-2B TN__22_ - - XNS36 NL34L AG00093LLA 3/32"AG00062LLA 1/16" MTGNR10-2B TN__22_ - - XNS36 NL34L AG00093LLA 3/32"AG00062LLA 1/16" MTGNL10-3B TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MTGNR10-3B TN__33_ ITSN322 CL6 XNS36 NL34L AG00093LLA 3/32"AG00078LLA 5/64" MTGNL16-4D TN__43_ ITSN433 CL9 XNS510 NL46 5/32HEX AG00093LLA 3/32" MTGNR16-4D TN__43_ ITSN433 CL9 XNS510 NL46 5/32HEX AG00093LLA 3/32" MTGNL20-4D TN__43_ ITSN433 CL9 XNS510 NL46 5/32HEX AG00093LLA 3/32" MTGNR20-4D TN__43_ ITSN433 CL9 XNS510 NL46 5/32HEX AG00093LLA 3/32" MTGNL20-5D TN__54_ ITSN533 CL9 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTGNR20-5D TN__54_ ITSN533 CL9 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTGNL24-5E TN__54_ ITSN533 CL9 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTGNR24-5E TN__54_ ITSN533 CL9 XNS510 NL58 5/32HEX AG00125LLA 1/8" MTGNL24-6E TN__66_ ITSN636 CL12 XNS510 NL68L 5/32HEX AG00140LLA 9/64" MTGNR24-6E TN__66_ ITSN636 CL12 XNS510 NL68L 5/32HEX AG00140LLA 9/64" 1059
