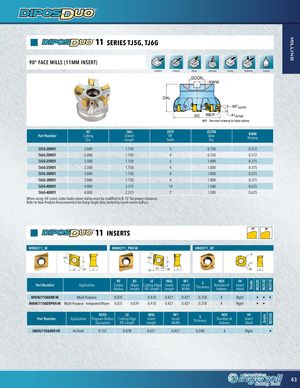

Каталог Ingersoll новинки 2021 - страница 43

milling 11 SERIES TJ5G, TJ6G 90° FACE MILLS (11MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant DCON KWW OAL 90°KAPR DC WEP .41APMX WEP - See insert drawing for wiper options. DC OALPart NumberCuttingOverallDia.Length ZEFFEff.Teeth DCONBoreDia. KWWKeyway TJ5G-20R01 2.000 1.750 5 0.750 0.312 TJ6G-20R01 2.000 1.750 4 0.750 0.312 TJ5G-25R01 2.500 1.750 6 1.000 0.375 TJ6G-25R01 2.500 1.750 4 1.000 0.375 TJ5G-30R01 3.000 1.750 8 1.000 0.375 TJ6G-30R01 3.000 1.750 6 1.000 0.375 TJ5G-40R01 4.000 2.375 10 1.500 0.625 TJ6G-40R01 4.000 2.375 7 1.500 0.625 When using -HF insert, cutter body corner radius must be modified to R.15” for proper clearance. Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 11 INSERTS HF M MNHU11_M MNHU11_PNR-M UNHU11_HF IC INSL INSL LE LE LE W1 RE S BSW1 RE S RE S Part Number Application RE BS LE INSLCornerWiperCutting EdgeInsertRadiusLengthEff. LengthLengthW1InsertWidthSThicknessNOINumber ofIndexesIHInsertHand MNHU110608R-M Multi-Purpose 0.031 - 0.410 0.421 0.421 0.318 4 Right • • • MNHU110608PNR-M Multi-Purpose - Integrated Wiper 0.031 0.039 0.410 0.421 0.421 0.318 4 Right • • REEQ LE INSLPart NumberApplicationProgram RadiusCutting EdgeInsertEquivalentEff. LengthLengthW1InsertWidthSThicknessNOINumber ofIndexesIHInsertHand UNHU110640R-HF Hi-Feed 0.157 0.078 0.421 0.421 0.240 4 Right • 43 Grade IN2505 IN2530Grade IN2510IN2505
