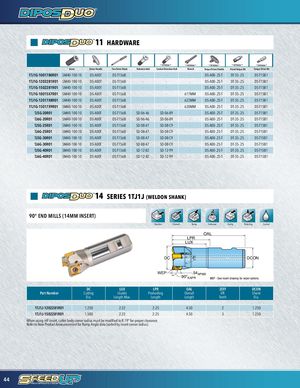

Каталог Ingersoll новинки 2021 - страница 44

11 HARDWARE **OPTIONAL** **OPTIONAL** **OPTIONAL** **OPTIONAL** **OPTIONAL** Screw Driver Handle Torx Driver Blade Retention Bolt Coolant Retention Bolt Wrench Torque Driver Handle Preset Torque Bit Torque Driver Bit 1TJ1G-1001780R01 SM40-100-10 DS-A00T DS-T156B - - - DS-A00-.25-T DT-35-.25 DS-T15B1 1TJ1G-1202281R01 SM40-100-10 DS-A00T DS-T156B - - - DS-A00-.25-T DT-35-.25 DS-T15B1 1TJ1G-1502281R01 SM40-100-10 DS-A00T DS-T156B - - - DS-A00-.25-T DT-35-.25 DS-T15B1 1TJ1G-10015X7R01 SM40-100-10 DS-A00T DS-T156B - - 617MM DS-A00-.25-T DT-35-.25 DS-T15B1 1TJ1G-12017X8R01 SM40-100-10 DS-A00T DS-T156B - - 622MM DS-A00-.25-T DT-35-.25 DS-T15B1 1TJ1G-15017X9R01 SM40-100-10 DS-A00T DS-T156B - - 630MM DS-A00-.25-T DT-35-.25 DS-T15B1 TJ5G-20R01 SM40-100-10 DS-A00T DS-T156B SD-06-46 SD-06-89 - DS-A00-.25-T DT-35-.25 DS-T15B1 TJ6G-20R01 SM40-100-10 DS-A00T DS-T156B SD-06-46 SD-06-89 - DS-A00-.25-T DT-35-.25 DS-T15B1 TJ5G-25R01 SM40-100-10 DS-A00T DS-T156B SD-08-47 SD-08-C9 - DS-A00-.25-T DT-35-.25 DS-T15B1 TJ6G-25R01 SM40-100-10 DS-A00T DS-T156B SD-08-47 SD-08-C9 - DS-A00-.25-T DT-35-.25 DS-T15B1 TJ5G-30R01 SM40-100-10 DS-A00T DS-T156B SD-08-47 SD-08-C9 - DS-A00-.25-T DT-35-.25 DS-T15B1 TJ6G-30R01 SM40-100-10 DS-A00T DS-T156B SD-08-47 SD-08-C9 - DS-A00-.25-T DT-35-.25 DS-T15B1 TJ5G-40R01 SM40-100-10 DS-A00T DS-T156B SD-12-82 SD-12-99 - DS-A00-.25-T DT-35-.25 DS-T15B1 TJ6G-40R01 SM40-100-10 DS-A00T DS-T156B SD-12-82 SD-12-99 - DS-A00-.25-T DT-35-.25 DS-T15B1 14 SERIES 1TJ1J (WELDON SHANK) 90° END MILLS (14MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant OAL LPR LUX DC DCON WEP 90°KAP.5R4APMX WEP - See insert drawing for wiper options. DC LUX LPR OAL ZEFF DCON Part Number Cutting Usable Protruding Overall Eff. Shank Dia. Length Max. Length Length Teeth Dia. 1TJ1J-1202281R01 1.250 2.22 2.25 4.50 2 1.250 1TJ1J-1502281R01 1.500 2.22 2.25 4.50 3 1.250 When using -HF insert, cutter body corner radius must be modified to R.19” for proper clearance. Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 44
