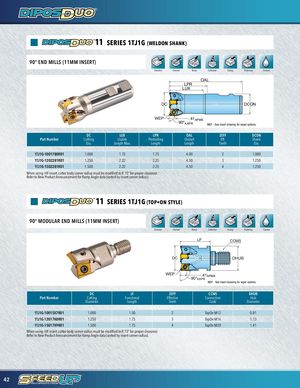

11 SERIES 1TJ1G (WELDON SHANK) 90° END MILLS (11MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant OAL LPR LUX DC DCON WEP 90°KAP.4R1APMX WEP - See insert drawing for wiper options. DC LUX LPR OAL ZEFF DCON Part Number Cutting Usable Protruding Overall Eff. Shank Dia. Length Max. Length Length Teeth Dia. 1TJ1G-1001780R01 1.000 1.72 1.75 4.00 2 1.000 1TJ1G-1202281R01 1.250 2.22 2.25 4.50 3 1.250 1TJ1G-1502281R01 1.500 2.22 2.25 4.50 4 1.250 When using -HF insert, cutter body corner radius must be modified to R.15” for proper clearance. Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 11 SERIES 1TJ1G (TOP•ON STYLE) 90° MODULAR END MILLS (11MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant LF CCMS DC DHUB WEP 90°KAP.4R1APMX WEP - See insert drawing for wiper options. DC LF ZEFF CCMS DHUB Part Number Cutting Functional Effective Connection Hub Diameter Length Teeth Code Diameter 1TJ1G-10015X7R01 1.000 1.50 2 TopOn M12 0.81 1TJ1G-12017X8R01 1.250 1.75 3 TopOn M16 1.13 1TJ1G-15017X9R01 1.500 1.75 4 TopOn M20 1.41 When using -HF insert, cutter body corner radius must be modified to R.15” for proper clearance. Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 42
