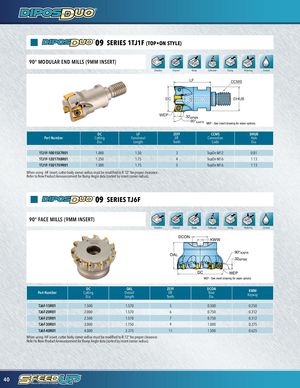

Каталог Ingersoll новинки 2021 - страница 40

09 SERIES 1TJ1F (TOP•ON STYLE) 90° MODULAR END MILLS (9MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant LF CCMS DC DHUB WEP .32APMX 90°KAPR WEP - See insert drawing for wiper options. DC LF ZEFF CCMS DHUB Part Number Cutting Functional Eff. Connection Hub Dia. Length Teeth Code Dia. 1TJ1F-10015X7R01 1.000 1.50 3 TopOn M12 0.81 1TJ1F-12017X8R01 1.250 1.75 4 TopOn M16 1.13 1TJ1F-15017X9R01 1.500 1.75 5 TopOn M16 1.13 When using -HF insert, cutter body corner radius must be modified to R.12” for proper clearance. Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 09 SERIES TJ6F 90° FACE MILLS (9MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant DCON KWW OAL 90°KAPR .32APMX DC WEP WEP - See insert drawing for wiper options. DC OALPart NumberCuttingOverallDia.Length ZEFFEff.Teeth DCONBoreDia. KWWKeyway TJ6F-15R01 1.500 1.570 5 0.500 0.250 TJ6F-20R01 2.000 1.570 6 0.750 0.312 TJ6F-25R01 2.500 1.570 7 0.750 0.312 TJ6F-30R01 3.000 1.750 9 1.000 0.375 TJ6F-40R01 4.000 2.375 11 1.500 0.625 When using -HF insert, cutter body corner radius must be modified to R.12” for proper clearance. Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 40
