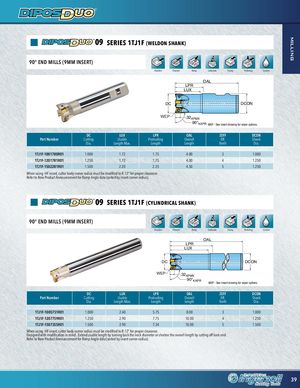

milling 09 SERIES 1TJ1F (WELDON SHANK) 90° END MILLS (9MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant OAL LPR LUX DC DCON WEP .32APMX 90°KAPR WEP - See insert drawing for wiper options. DC LUX LPR OAL ZEFF DCON Part Number Cutting Usable Protruding Overall Eff. Shank Dia. Length Max. Length Length Teeth Dia. 1TJ1F-1001780R01 1.000 1.72 1.75 4.00 3 1.000 1TJ1F-1201781R01 1.250 1.72 1.75 4.00 4 1.250 1TJ1F-1502281R01 1.500 2.20 2.25 4.50 5 1.250 When using -HF insert, cutter body corner radius must be modified to R.12” for proper clearance. Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 09 SERIES 1TJ1F (CYLINDRICAL SHANK) 90° END MILLS (9MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant OAL LPR LUX DC DCON WEP .32APMX 90°KAPR WEP - See insert drawing for wiper options. DC LUX LPR OAL ZEFF DCON Part Number Cutting Usable Protruding Overall Eff. Shank Dia. Length Max. Length Length Teeth Dia. 1TJ1F-10057S1R01 1.000 2.40 5.75 8.00 3 1.000 1TJ1F-12077S9R01 1.250 2.90 7.75 10.00 4 1.250 1TJ1F-15073S5R01 1.500 2.90 7.34 10.00 5 1.500 When using -HF insert, cutter body corner radius must be modified to R.12” for proper clearance. Designed with modification in mind. Extend usable length by turning back the neck diameter or shorten the overall length by cutting off back end. Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 39
