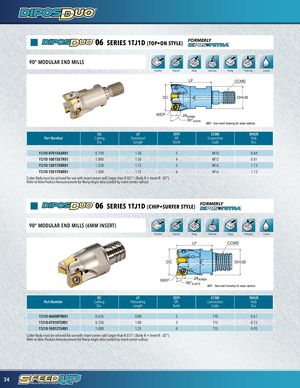

06 SERIES 1TJ1D (TOP•ON STYLE) FORMERLY 90º MODULAR END MILLS Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant LF CCMS DC DHUB WEP .24APMX 90°KAPR WEP - See insert drawing for wiper options. DC LF ZEFF CCMS DHUB Part Number Cutting Functional Eff. Connection Hub Dia. Length Teeth Code Dia. 1TJ1D-07015X6R01 0.750 1.50 3 M10 0.69 1TJ1D-10015X7R01 1.000 1.50 4 M12 0.81 1TJ1D-12017X8R01 1.250 1.75 5 M16 1.13 1TJ1D-15017X8R01 1.500 1.75 6 M16 1.13 Cutter Body must be relieved for use with insert corner radii larger than R.031”; (Body R = Insert R -.02"). Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 06 SERIES 1TJ1D (CHIP•SURFER STYLE) FORMERLY 90º MODULAR END MILLS (6MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant LF CCMS DC DHUB WEP .24APMX90°KAPRWEP - See insert drawing for wiper options. DC LF ZEFF CCMS DHUB Part Number Cutting Protruding Eff. Connection Hub Dia. Length Teeth Code Dia. 1TJ1D-06008TRR01 0.625 0.80 2 T10 0.61 1TJ1D-07010TSR01 0.750 1.00 3 T12 0.73 1TJ1D-10012TUR01 1.000 1.25 4 T15 0.95 Cutter Body must be relieved for use with insert corner radii larger than R.031”; (Body R = Insert R -.02"). Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 34
