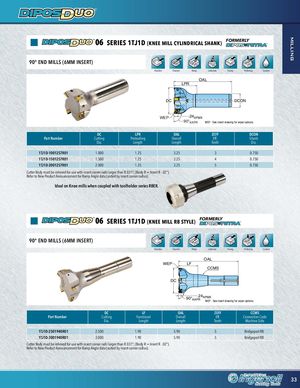

milling 06 SERIES 1TJ1D (KNEE MILL CYLINDRICAL SHANK) FORMERLY 90º END MILLS (6MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant OAL LPR DC DCON WEP .24APMX 90°KAPR WEP - See insert drawing for wiper options. DC LPR OAL ZEFF DCON Part Number Cutting Protruding Overall Eff. Shank Dia. Length Length Teeth Dia. 1TJ1D-10012S7R01 1.000 1.25 3.25 3 0.750 1TJ1D-15012S7R01 1.500 1.25 3.25 4 0.750 1TJ1D-20012S7R01 2.000 1.25 3.25 5 0.750 Cutter Body must be relieved for use with insert corner radii larger than R.031”; (Body R = Insert R -.02"). Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). Ideal on Knee mills when coupled with toolholder series R8ER. 06 SERIES 1TJ1D (KNEE MILL R8 STYLE) FORMERLY 90º END MILLS (6MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant OAL WEP LF CCMS DC 90°KAP.R24APWMEPX- See insert drawing for wiper options. DC LF OAL ZEFF CCMS Part Number Cutting Functional Overall Eff. Connection Code Dia. Length Length Teeth Machine Side 1TJ1D-2501940R01 2.500 1.90 5.90 5 Bridgeport R8 1TJ1D-3001940R01 3.000 1.90 5.90 5 Bridgeport R8 Cutter Body must be relieved for use with insert corner radii larger than R.031”; (Body R = Insert R -.02"). Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 33
