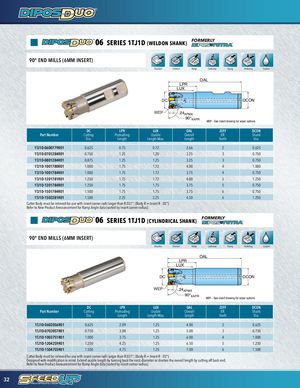

06 SERIES 1TJ1D (WELDON SHANK) FORMERLY 90º END MILLS (6MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant OAL LPR LUX DC DCON WEP .24APMX 90°KAPR WEP - See insert drawing for wiper options. DC LPR LUX OAL ZEFF DCON Part Number Cutting Protruding Usable Overall Eff. Shank Dia. Length Length Max. Length Teeth Dia. 1TJ1D-0600779R01 0.625 0.75 0.72 2.66 2 0.625 1TJ1D-0701284R01 0.750 1.25 1.20 3.25 3 0.750 1TJ1D-0801284R01 0.875 1.25 1.25 3.25 3 0.750 1TJ1D-1001780R01 1.000 1.75 1.72 4.00 4 1.000 1TJ1D-1001784R01 1.000 1.75 1.72 3.75 4 0.750 1TJ1D-1201781R01 1.250 1.75 1.72 4.00 5 1.250 1TJ1D-1201784R01 1.250 1.75 1.75 3.75 5 0.750 1TJ1D-1501784R01 1.500 1.75 1.75 3.75 6 0.750 1TJ1D-1502281R01 1.500 2.25 2.25 4.50 6 1.250 Cutter Body must be relieved for use with insert corner radii larger than R.031”; (Body R = Insert R -.02"). Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 06 SERIES 1TJ1D (CYLINDRICAL SHANK) FORMERLY 90º END MILLS (6MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant OAL LPR LUX DC DCON WEP .24APMX 90°KAPR WEP - See insert drawing for wiper options. DC LPR LUX OAL ZEFF DCON Part Number Cutting Protruding Usable Overall Eff. Shank Dia. Length Length Max. Length Teeth Dia. 1TJ1D-06020S6R01 0.625 2.09 1.25 4.00 2 0.625 1TJ1D-07030S7R01 0.750 3.00 1.25 5.00 3 0.750 1TJ1D-10037S1R01 1.000 3.75 1.25 6.00 4 1.000 1TJ1D-12042S9R01 1.250 4.25 1.25 6.50 5 1.250 1TJ1D-15047S5R01 1.500 4.75 1.25 7.00 6 1.500 Cutter Body must be relieved for use with insert corner radii larger than R.031”; (Body R = Insert R -.02"). Designed with modification in mind. Extend usable length by turning back the neck diameter or shorten the overall length by cutting off back end. Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 32
