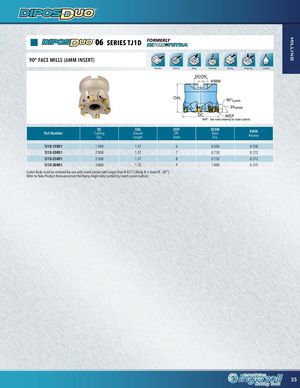

milling 06 SERIES TJ1D FORMERLY 90º FACE MILLS (6MM INSERT) Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant DCON KWW OAL 90°KAPR .24APMX DC WEP WEP - See insert drawing for wiper options. Part Number DC OALCuttingOverallDia.Length ZEFFEff.Teeth DCONBoreDia. KWWKeyway TJ1D-15R01 1.500 1.57 6 0.500 0.250 TJ1D-20R01 2.000 1.57 7 0.750 0.312 TJ1D-25R01 2.500 1.57 8 0.750 0.312 TJ1D-30R01 3.000 1.75 9 1.000 0.375 Cutter Body must be relieved for use with insert corner radii larger than R.031”; (Body R = Insert R -.02"). Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius). 35
