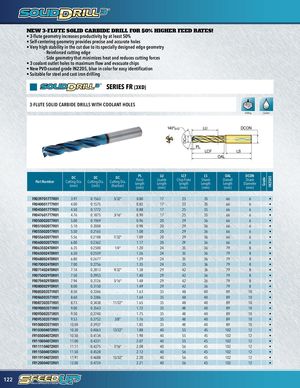

DCm7 Grade IN2505 NEW 3-FLUTE SOLID CARBIDE DRILL FOR 50% HIGHER FEED RATES! • 3-flute geometry increases productivity by at least 50% • Self-centering geometry provides precise and accurate holes • Very high stability in the cut due to its specially designed edge geometry - Reinforced cutting edge - Side geometry that minimizes heat and reduces cutting forces • 3 coolant outlet holes to maximum flow and evacuate chips • New PVD-coated grade IN2205, blue in color for easy identification • Suitable for steel and cast iron drilling SERIES FR (3XD) 3-FLUTE SOLID CARBIDE DRILLS WITH COOLANT HOLES Drilling Coolant 140ºSIG LU DCON PL LCF LS OAL Part Number DC DC DCCutting Dia.Cutting Dia.Cutting Dia.(mm)(inch)(fraction)PLPointLength(mm)LULCFLSUsableChip FluteShankLengthLengthLength(mm)(mm)(mm)OALDCONOverallShankLengthDiameter(mm)(mm) FR0397017T7R01 3.97 0.1563 5/32" 0.80 17 25 35 66 6 • FR0400017T7R01 4.00 0.1575 - 0.82 17 25 35 66 6 • FR0450017T7R01 4.50 0.1772 - 0.88 17 25 35 66 6 • FR0476017T7R01 4.76 0.1875 3/16" 0.90 17 25 35 66 6 • FR0500020T7R01 5.00 0.1969 - 0.96 20 29 36 66 6 • FR0510020T7R01 5.10 0.2008 - 0.98 20 29 36 66 6 • FR0550020T7R01 5.50 0.2165 - 1.08 20 29 36 66 6 • FR0556020T7R01 5.56 0.2188 7/32" 1.09 20 29 36 66 6 • FR0600020T7R01 6.00 0.2362 - 1.17 20 29 36 66 6 • FR0635024T0R01 6.35 0.2500 1/4" 1.20 24 35 36 79 8 • FR0650024T0R01 6.50 0.2559 - 1.26 24 35 36 79 8 • FR0680024T0R01 6.80 0.2677 - 1.29 24 35 36 79 8 • FR0700024T0R01 7.00 0.2756 - 1.35 24 35 36 79 8 • FR0714024T0R01 7.14 0.2813 9/32" 1.38 29 42 36 79 8 • FR0750029T0R01 7.50 0.2953 - 1.40 29 42 36 79 8 • FR0794029T0R01 7.94 0.3126 5/16" 1.48 29 42 36 79 8 • FR0800029T0R01 8.00 0.3150 - 1.49 29 42 36 79 8 • FR0850035T1R01 8.50 0.3346 - 1.63 35 48 40 89 10 • FR0860035T1R01 8.60 0.3386 - 1.64 35 48 40 89 10 • FR0873035T1R01 8.73 0.3438 11/32" 1.65 35 48 40 89 10 • FR0900035T1R01 9.00 0.3543 - 1.72 35 48 40 89 10 • FR0950035T1R01 9.50 0.3740 - 1.75 35 48 40 89 10 • FR0953035T1R01 9.53 0.3752 3/8" 1.76 35 48 40 89 10 • FR1000035T1R01 10.00 0.3937 - 1.85 35 48 40 89 10 • FR1030040T2R01 10.30 0.4063 13/32" 1.88 40 55 45 102 12 • FR1050040T2R01 10.50 0.4134 - 1.98 40 55 45 102 12 • FR1100040T2R01 11.00 0.4331 - 2.07 40 55 45 102 12 • FR1111040T2R01 11.11 0.4375 7/16" 2.08 40 56 45 102 12 • FR1150040T2R01 11.50 0.4528 - 2.12 40 56 45 102 12 • FR1191040T2R01 11.91 0.4688 15/32" 2.20 40 56 45 102 12 • FR1200040T2R01 12.00 0.4724 - 2.21 40 56 45 102 12 • 122
