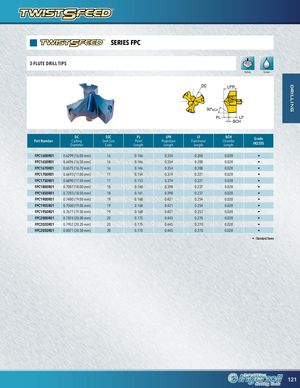

drilling SERIES FPC 3-FLUTE DRILL TIPS Drilling Coolant DC LPR 30ºKCH PL LF BCH DCPart NumberCuttingDiameterSSCSeat SizeCodePLPointLengthLPR LF BCHProjectionFunctionalChamferLengthLengthLength GradeIN2205 FPC1600R01 0.6299 (16.00 mm) 16 0.146 0.354 0.208 0.028 • FPC1650R01 0.6496 (16.50 mm) 16 0.146 0.354 0.208 0.028 • FPC1670R01 0.6575 (16.70 mm) 16 0.146 0.354 0.208 0.028 • FPC1700R01 0.6693 (17.00 mm) 17 0.154 0.374 0.221 0.028 • FPC1750R01 0.6890 (17.50 mm) 17 0.153 0.374 0.221 0.028 • FPC1800R01 0.7087 (18.00 mm) 18 0.160 0.398 0.237 0.028 • FPC1850R01 0.7283 (18.50 mm) 18 0.161 0.398 0.237 0.028 • FPC1900R01 0.7480 (19.00 mm) 19 0.168 0.421 0.254 0.028 • FPC1905R01 0.7500 (19.05 mm) 19 0.168 0.421 0.254 0.028 • FPC1950R01 0.7677 (19.50 mm) 19 0.168 0.421 0.253 0.028 • FPC2000R01 0.7874 (20.00 mm) 20 0.175 0.445 0.270 0.028 • FPC2020R01 0.7952 (20.20 mm) 20 0.175 0.445 0.270 0.028 • FPC2050R01 0.8071 (20.50 mm) 20 0.175 0.445 0.270 0.028 • • : Standard items 121
