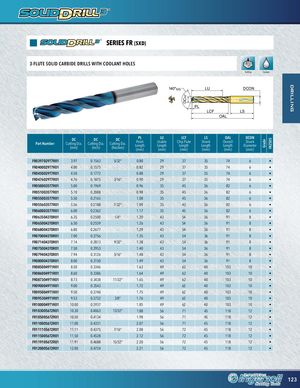

DCm7 Grade IN2505 drilling SERIES FR (5XD) 3-FLUTE SOLID CARBIDE DRILLS WITH COOLANT HOLES Drilling Coolant 140ºSIG LU DCON PL LCF LS OAL Part Number DC DC DCCutting Dia.Cutting Dia.Cutting Dia.(mm)(inch)(fraction)PLPointLength(mm)LULCFLSUsableChip FluteShankLengthLengthLength(mm)(mm)(mm)OALDCONOverallShankLengthDiameter(mm)(mm) FR0397029T7R01 3.97 0.1563 5/32" 0.80 29 37 35 74 6 • FR0400029T7R01 4.00 0.1575 - 0.82 29 37 35 74 6 • FR0450029T7R01 4.50 0.1772 - 0.88 29 37 35 74 6 • FR0476029T7R01 4.76 0.1875 3/16" 0.90 29 37 35 74 6 • FR0500035T7R01 5.00 0.1969 - 0.96 35 45 36 82 6 • FR0510035T7R01 5.10 0.2008 - 0.98 35 45 36 82 6 • FR0550035T7R01 5.50 0.2165 - 1.08 35 45 36 82 6 • FR0556035T7R01 5.56 0.2188 7/32" 1.09 35 45 36 82 6 • FR0600035T7R01 6.00 0.2362 - 1.17 35 45 36 82 6 • FR0635043T0R01 6.35 0.2500 1/4" 1.20 43 54 36 91 8 • FR0650043T0R01 6.50 0.2559 - 1.26 43 54 36 91 8 • FR0680043T0R01 6.80 0.2677 - 1.29 43 54 36 91 8 • FR0700043T0R01 7.00 0.2756 - 1.35 43 54 36 91 8 • FR0714043T0R01 7.14 0.2813 9/32" 1.38 43 54 36 91 8 • FR0750043T0R01 7.50 0.2953 - 1.40 43 54 36 91 8 • FR0794043T0R01 7.94 0.3126 5/16" 1.48 43 54 36 91 8 • FR0800043T0R01 8.00 0.3150 - 1.49 43 54 36 91 8 • FR0850049T1R01 8.50 0.3346 - 1.63 49 62 40 103 10 • FR0860049T1R01 8.60 0.3386 - 1.64 49 62 40 103 10 • FR0873049T1R01 8.73 0.3438 11/32" 1.65 49 62 40 103 10 • FR0900049T1R01 9.00 0.3543 - 1.72 49 62 40 103 10 • FR0950049T1R01 9.50 0.3740 - 1.75 49 62 40 103 10 • FR0953049T1R01 9.53 0.3752 3/8" 1.76 49 62 40 103 10 • FR1000049T1R01 10.00 0.3937 - 1.85 49 62 40 103 10 • FR1030056T2R01 10.30 0.4063 13/32" 1.88 56 71 45 118 12 • FR1050056T2R01 10.50 0.4134 - 1.98 56 71 45 118 12 • FR1100056T2R01 11.00 0.4331 - 2.07 56 71 45 118 12 • FR1111056T2R01 11.11 0.4375 7/16" 2.08 56 72 45 118 12 • FR1150056T2R01 11.50 0.4528 - 2.12 56 72 45 118 12 • FR1191056T2R01 11.91 0.4688 15/32" 2.20 56 72 45 118 12 • FR1200056T2R01 12.00 0.4724 - 2.21 56 72 45 118 12 • 123
